Juno Lighting Group

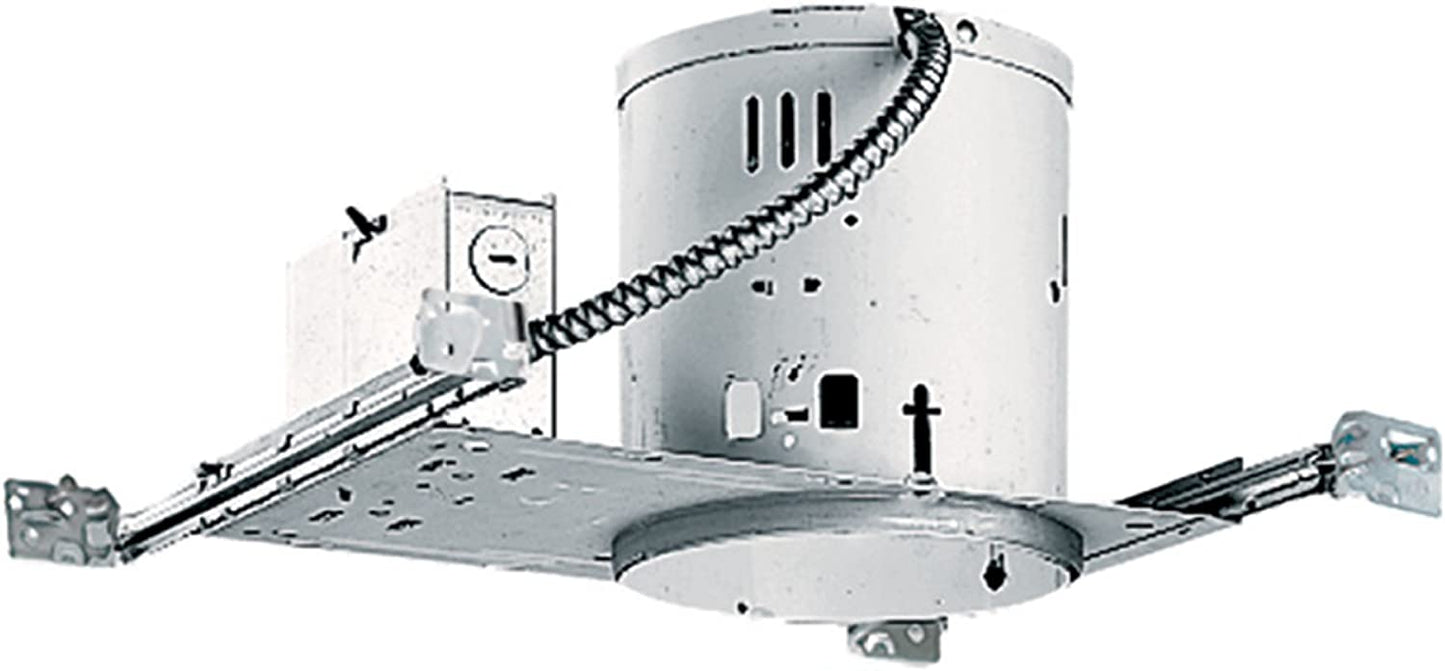

Juno Lighting TC2S 6-Inch Non-IC Rated Construction Universal Housing with Real Nail 2

Regular price $22.00 USD
Regular price $55.20 USD Sale price $22.00 USD
Sale Sold out
Material type
Color
Package quantity

From the Manufacturer

The TC2S 6-Inch Downlight Incandescent Housing is a Non-IC rated housing. The housing has a drop socket with spring to accommodate various trim installations and contains a medium base porcelain socket with nickel-plated copper screw shell that accepts an incandescent light bulb. Bulb wattage ratings and apertures are based on trim selection. Installation of the TC2S is made easy with a smaller footprint bar hanger; using the Real Nail 2 telescoping system featuring bugle-headed nails for easy repositioning of housing in joist construction and integral T-bar clip to secure housing in suspended ceiling grid. Patented breakaway bars for tight joist spacing and curved foot facilitates alignment with joist bottom. Quick-Loc slot and oversized set screw lock fixture in position. Bar hangers may be re-positioned 90 degrees. The TC2S is supplied with a pre-wired junction box with (5) 1/2-Inch and (1) 3/4-Inch knockouts, (4) non-metallic sheathed cable connectors, and ground wire. UL Listed, C-UL/CSA certified for through-branch wiring, with a maximum of (8) 12 AWG-90-degrees Celsius branch circuit conductors. Wet location listed when using a 20, 21, 22, 239, 240, 241, 242, 243 or 9900 trim. The wet listing also includes the 28 and 29 trims when used with PAR30/PAR38 outdoor rated bulbs. All trims are sold separately and come in a wide variety of styles and finishes to customize to your needs, including the 23, 24, 25, 26, 27, 224, 226, 228, 229, 230, 232, 233, 244, 247, 249, 250, 251, 254, 257, 261, 264, 267, 424, 427, 9024, 9324, 9524, 9900 or XR30101 trims. Conforms to City of Chicago IP requirements. Building on over 30 years of leadership in recessed lighting, Juno Down-Lites are renowned for their versatility and efficiency. Whether its general downlighting, wall washing, or accent lighting, Juno recessed fixtures will help make your vision a reality. Juno Lighting Group's warranty period for general lighting products is one year from date of purchase.

  • Designed to be installed in non-insulated areas or where insulation is spaced at least 3-Inch from housing
  • Housing is vertically adjustable to accommodate up to a 2-Inch ceiling thickness and is thermally protected against the improper use of bulbs
  • Shadow-free, knife-edge trim design blends smoothly in to the ceiling and allows architectural continuity with a wide variety of trims
  • Thermally protected against the improper use of bulbs
  • UL Listed, C-UL/CSA certified for damp and wet locations
